1-Gang Solid Brass Knurled Rotary Dimmer Light Switch

• Plate size: 2 13/16″ × 4 11/16″
• Plate thickness: 0.080″
• Knob style: solid brass, diamond-knurled
• Recommended wall box depth: 2 1/8″

Included mounting screws:

• Screw length: 1.97″
• Screw head diameter: 0.28″
• Screw head thickness: 0.08″
• Screw slot width: 0.04″

Dimmer Specifications

These specifications apply to each dimmer module. Select the wiring option offered for this product.

• Dimming Type: Leading Edge (TRIAC)
• Voltage: 110–120 V | 50/60 Hz
• Dimmable LED & halogen: 3–150 W per dimmer
• Incandescent: 40–600 W per dimmer
• Built-in thermal protection: Automatic safety cutoff
• Temperature rating (Ta): Up to 130°C (266°F)
• Mechanical life: 10,000+ dimming cycles (minimum)
• Housing: Flame-retardant polycarbonate (PC)
• Single-Pole operation: Rotate the knob through the click for ON/OFF, then continue turning to adjust brightness. For control from one location.

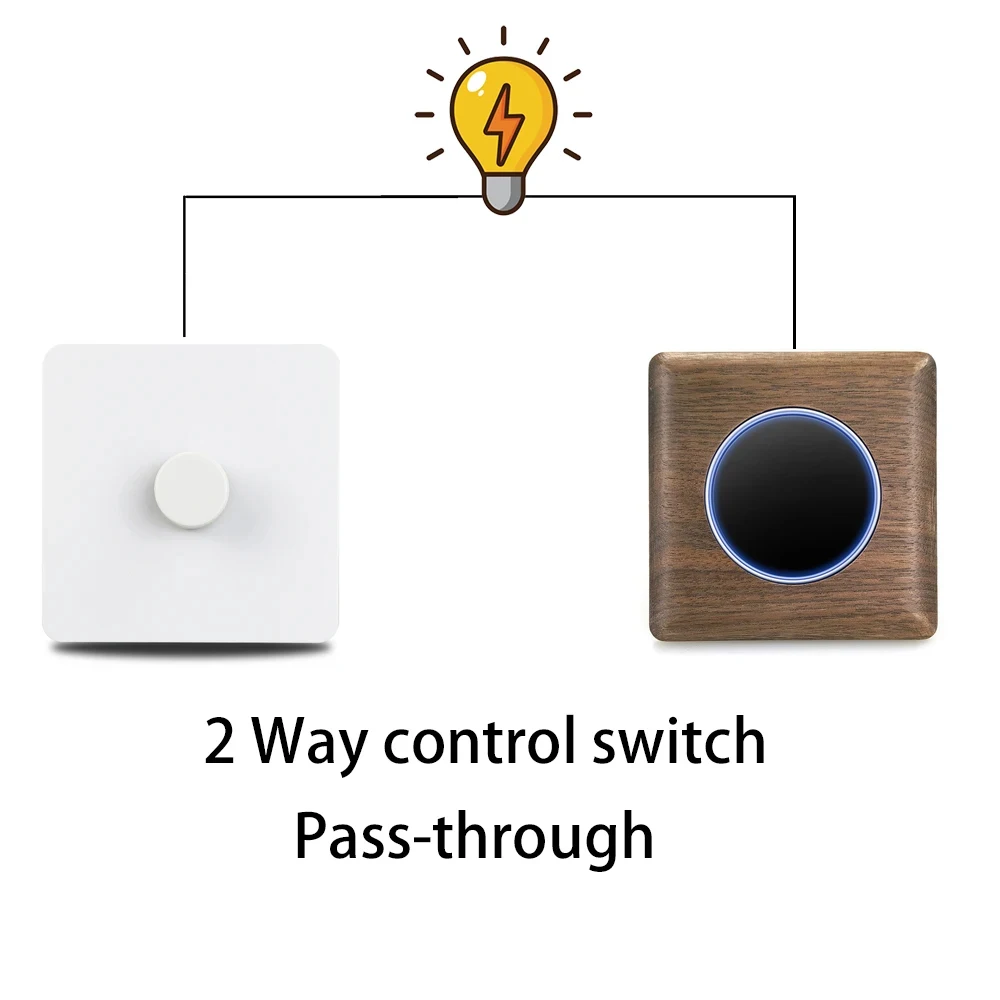

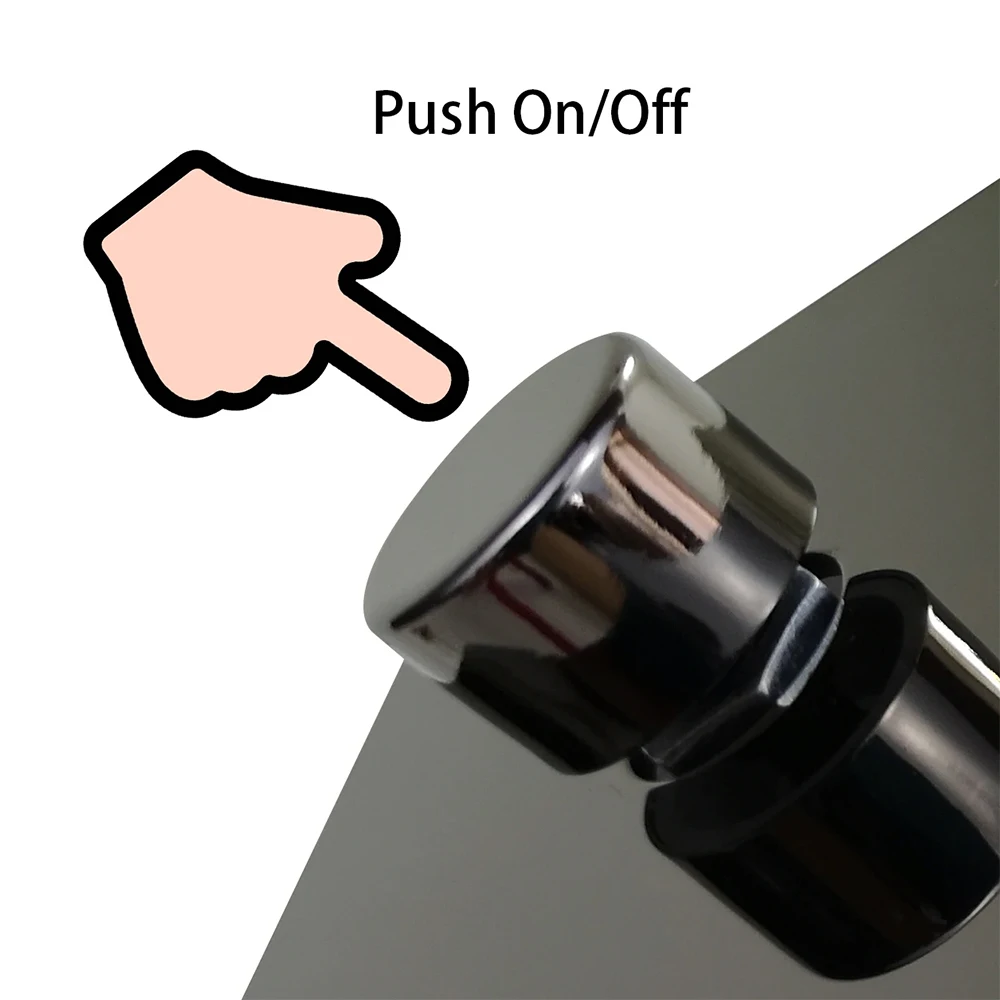

• 3-Way operation: Push the knob for ON/OFF and rotate to adjust brightness. Supports single-pole wiring or 3-way switching with a standard 3-way switch at the other location.
• Fit: Each individual dimmer module fits standard North American single-gang electrical wall boxes. Multi-gang assemblies require a wall box matching the plate’s gang count.
• Dimmer component certification: UL Certified (U.S. & Canada).

Use only TRIAC-compatible dimmable bulbs or drivers. Follow the instructions for the exact module and any required load derating when dimmers are installed together. Component certification does not certify the complete plate assembly.

Plate details

• Solid brass wall plate, 0.080″ thick

Not compatible with: trailing-edge (ELV), 0–10V, DALI, smart bulbs, magnetic low-voltage, or other non-TRIAC dimming systems.

What’s included:

• Solid brass wall plate
• Rotary dimmer module (Single-Pole or 3-Way, as selected)
• Matching dimmer knob
• Matching mounting screws

• Aged Bronze (Hand-Brushed) — deep tone with a subtle greenish patina effect. Each piece is slightly unique due to hand brushing.
• Antique Brass (Hand-Brushed) — hand-brushed artisanal texture with intentional variation. This is part of the design and not a defect.
• Unlacquered Antique Brass (Hand-Brushed) — antique brass without lacquer. It comes pre-aged and develops natural patina over time, darkening beautifully with touch and air exposure.
• Satin Brass — smooth brushed brass with a protective lacquer that helps preserve the original appearance and slow natural patina.
• Stainless Steel — cool modern metallic tone with a brushed texture.
• Matte Black — deep matte-black coating over solid brass for dramatic contrast.
• White — clean white coating on solid brass for a minimalist look.

Batch variation & handmade finish notes: Because our wall plates are hand-finished brass, slight color and patina variation between batches is normal and expected. Factors like brushing, polishing, paint mixing, and humidity can change the final tone.

Most finishes vary up to about 10% from batch to batch.

Unlacquered Antique Brass is made using a different oxidizing process, so variation can be less predictable and may be up to about 30% lighter or darker.

To help reduce mismatch, we do our best to ship items in the same order from the same production batch whenever possible.

This is part of the handmade nature of real brass and is not considered a defect.

Our brass products are made from solid metal and finished by hand. To clean, wipe gently with a soft, dry or slightly damp cloth.

Avoid abrasive pads, metal polishes, or chemical cleaners, as these can damage the surface.

Unlacquered and antique finishes are designed to age naturally. Over time, they may darken or develop patina, especially with handling. This is a normal characteristic of real brass and part of its appeal.

For lacquered finishes, gentle cleaning will help preserve the original appearance. Do not use ammonia-based or acidic cleaners on any finish.
