1-Gang Solid Brass Knurled Toggle Light Switch & Dimmer — Stacked

$160.00

Finish: Stainless Steel Compare switch finish samples

Delivery & lead times

Processing, production and transit times vary by product. Made-to-order items need additional production time. Check the shipping policy and contact us before ordering for a fixed installation date.

View shipping details

Returns

Return eligibility depends on the product and configuration. Custom items, certain finishes, cabinet hardware, samples and open-box items have exclusions. Read the full policy before ordering or attempting installation.

View the full return policy

Ask a product question

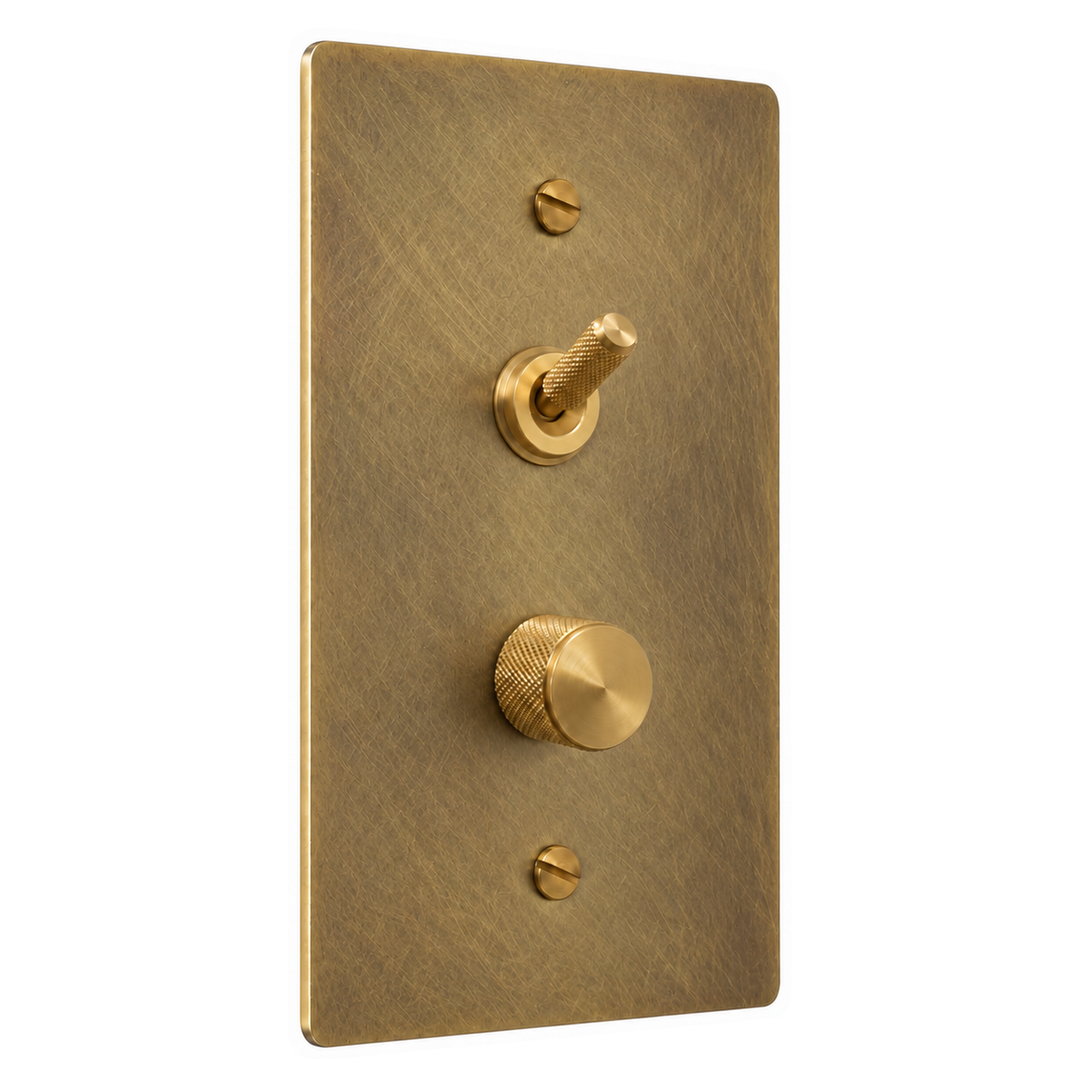

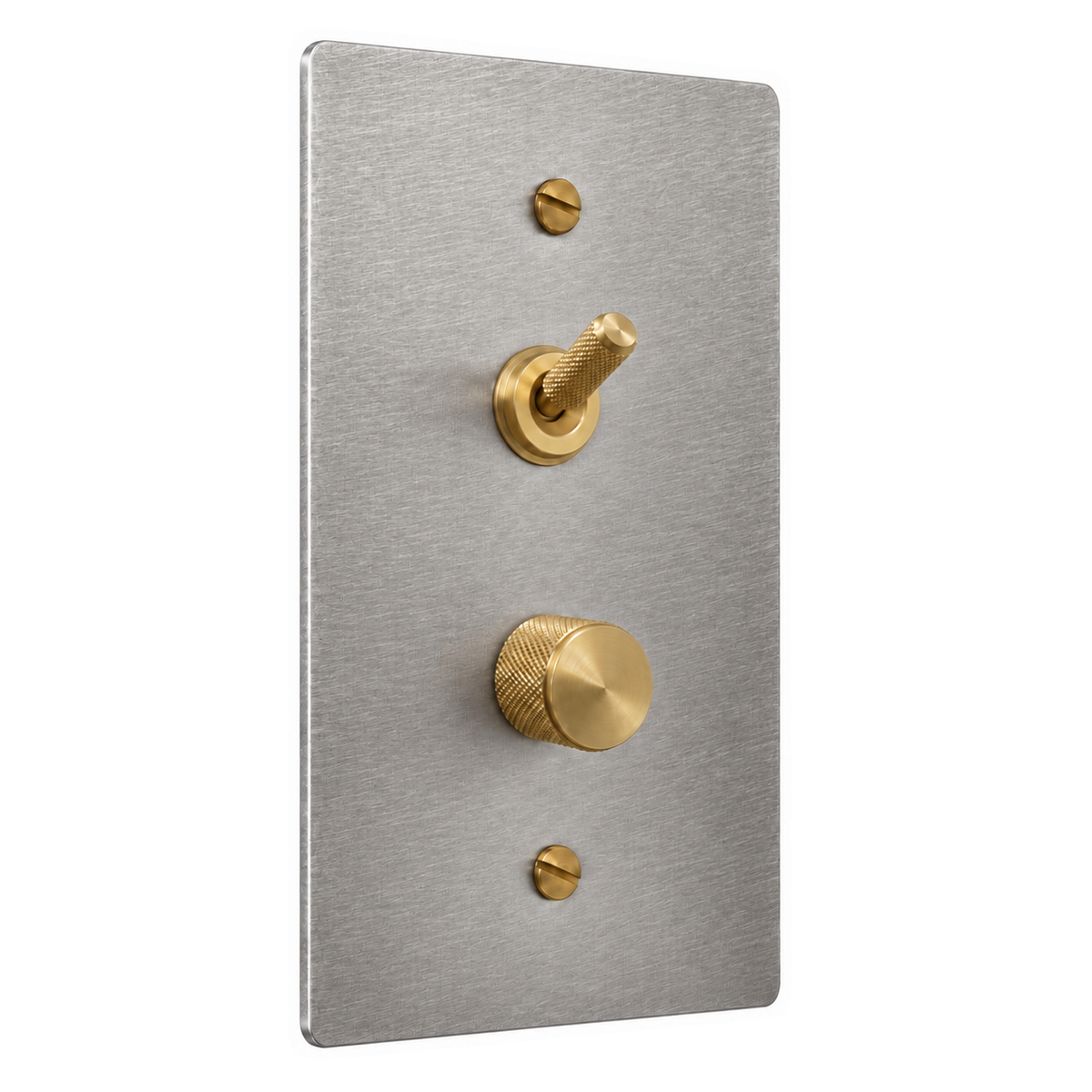

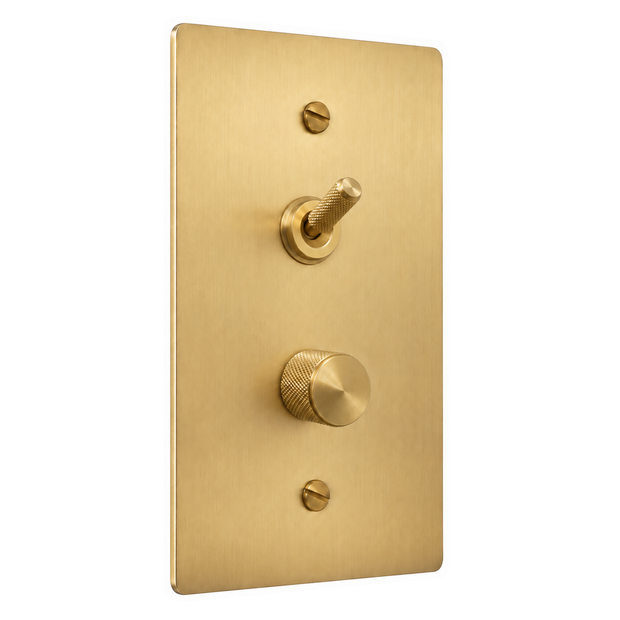

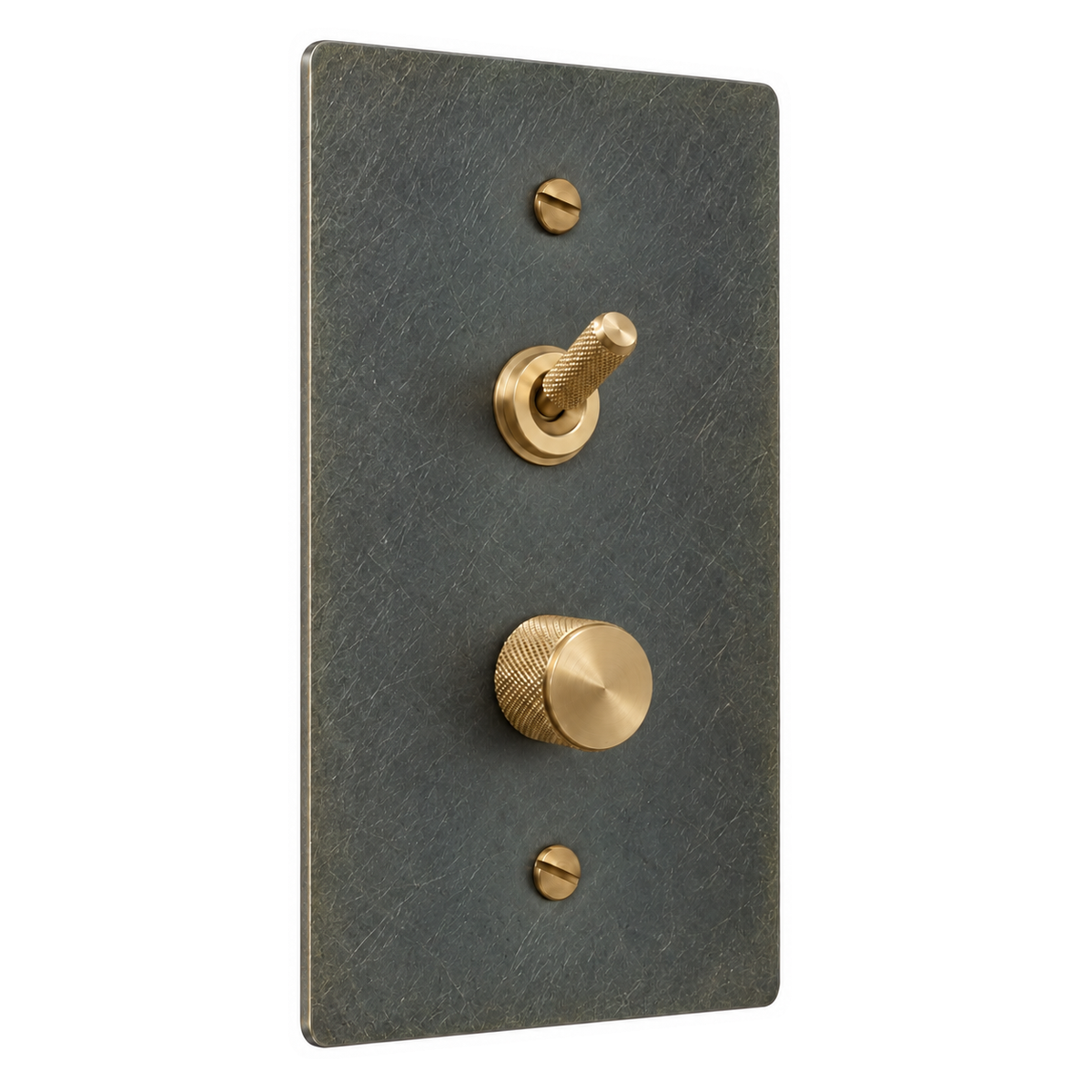

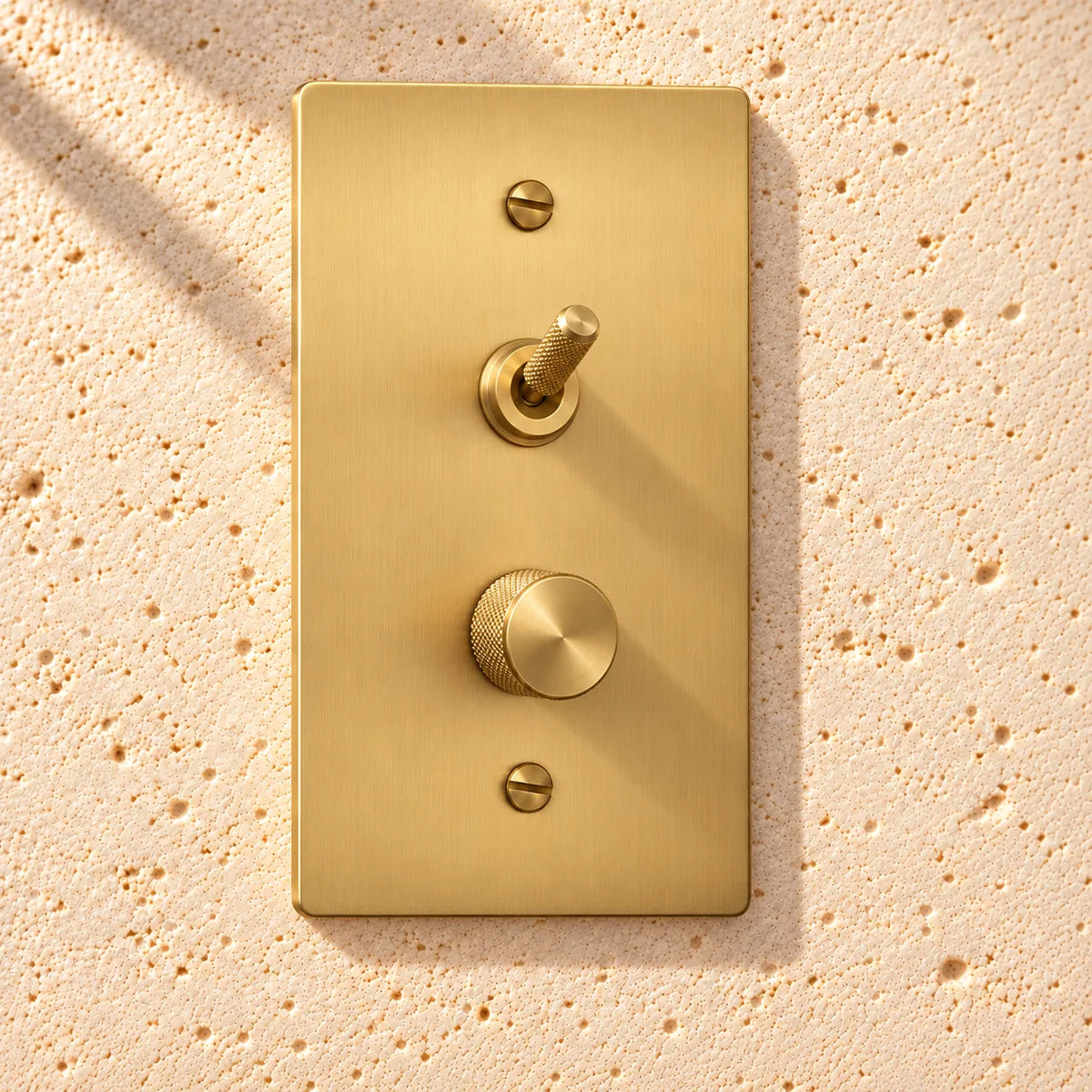

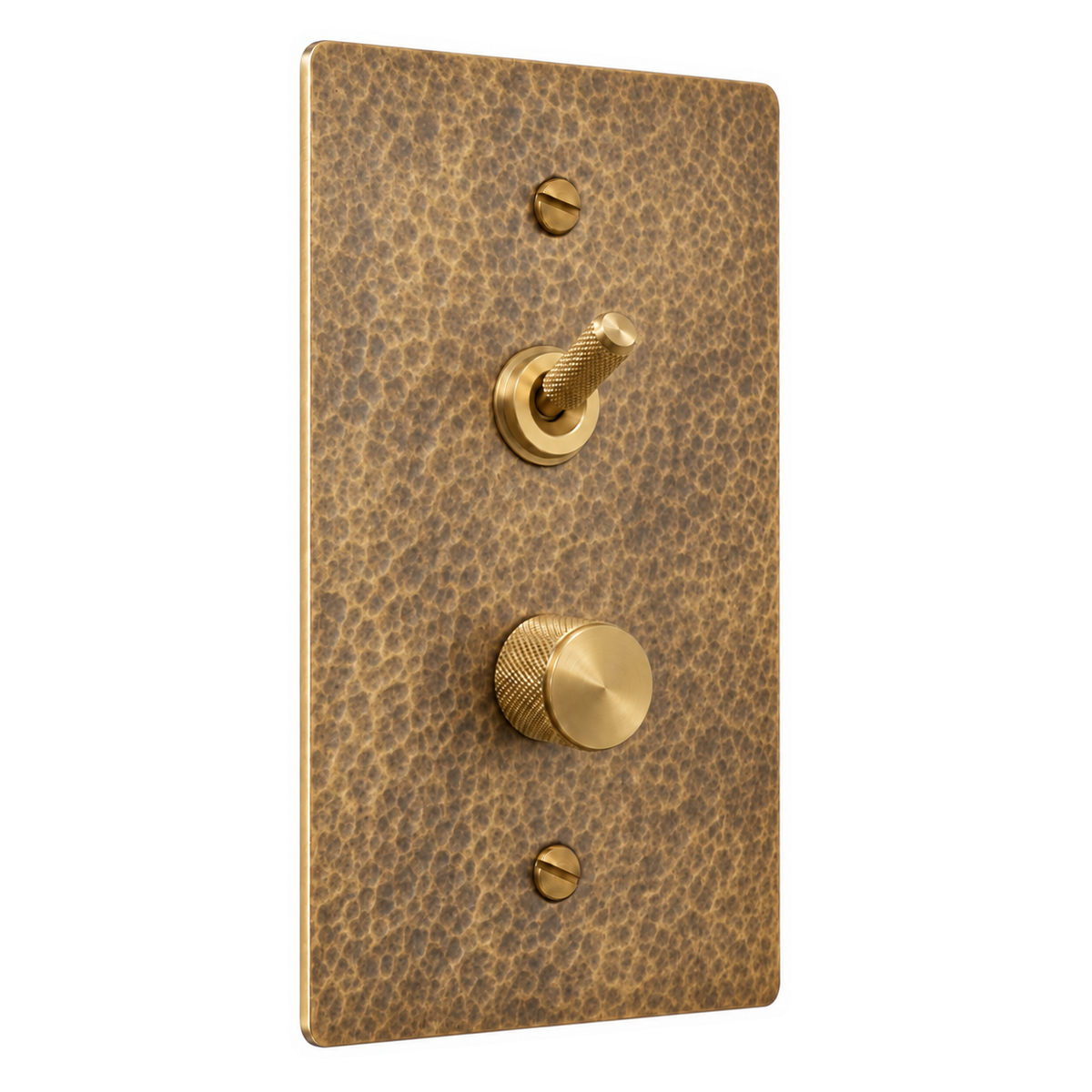

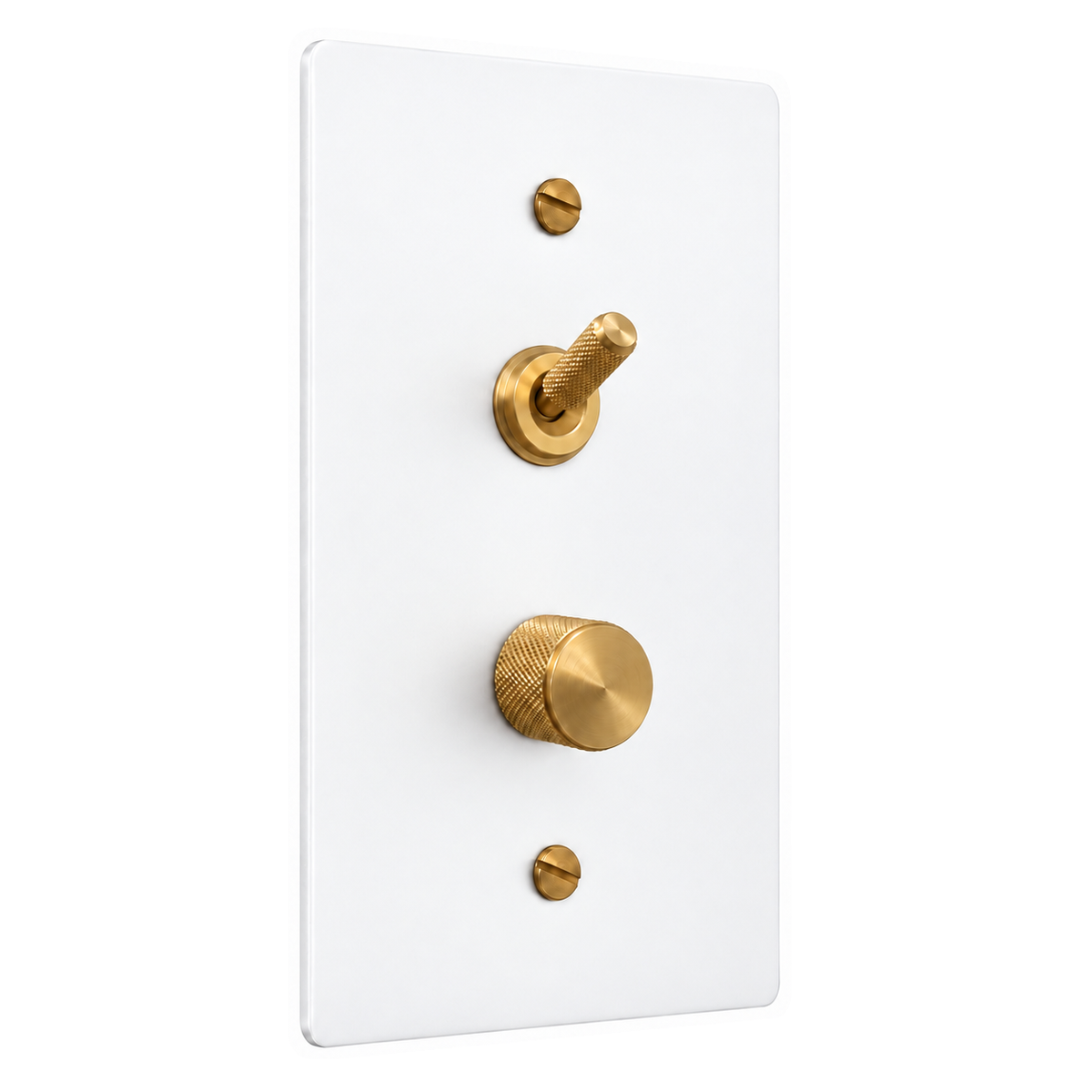

Combine a knurled toggle and a rotary dimmer in one gang. The toggle sits above the dimmer knob on a single brass wall plate, giving you two different control functions in a compact vertical arrangement.

Layout and visible details

1-gang plate with 1 toggle + 1 rotary dimmer.
Vertical layout: toggle above rotary dimmer, both in one gang.
Toggle style: Knurled Toggle Light Switch.
Plate finish selected from the available variants.

Each knurled lever sits inside a circular metal collar, giving the control a textured grip and a clean, round base.

Choose your finish

Select the plate finish from the available options and review its matching product photos. The visible controls and mounting screws are brass in every plate finish.

Before ordering

Check the selected devices, wiring configuration, electrical ratings and wall-box fit for your project. Match each dimmer to the intended lamp or driver and its permitted load. Have a qualified electrician confirm the exact assembly and installation requirements. See our installation and compatibility guide.

Selected devices and operation

The stacked knurled-toggle assembly provides two separate controls: the toggle supports single-pole or 3-way wiring, and the rotary dimmer operates its own circuit from one location.

Each knurled toggle module is rated 12–250V, is compatible with US 120V circuits, and supports single-pole or 3-way wiring.

The stacked toggle and dimmer control two independent lighting circuits. The toggle supports single-pole or 3-way wiring. The rotary dimmer uses single-pole TRIAC control from one location on 110–120V AC: 3–150W for compatible dimmable LED or halogen loads, or 40–250W for incandescent loads. Click for on/off and rotate to dim. Use TRIAC-compatible bulbs or drivers. The dimmer component has no grounding wire.

Toggle certification

The toggle switch components in this product are CE certified and are not UL listed.

Included

1 × Selected-finish solid brass wall plate.
2 × Brass slotted mounting screws.
1 × Stacked knurled toggle light switch and rotary dimmer module.

Technical specifications

Dimmer Specifications

Specifications for the compact single-pole dimmer module.

Dimming Type: Leading Edge (TRIAC)
Voltage: 110–120 V
Dimmable LED & halogen: 3–150 W per dimmer
Incandescent: 40–250 W per dimmer
Control: Single-pole: one-location control only.
Operation: Rotate the knob through the click for ON/OFF, then continue turning to adjust brightness.
Grounding wire: The compact dimmer module has no separate grounding wire. Follow the grounding requirements for the complete assembly.
Dimmer component certification: cULus listed for the United States and Canada.

Use only TRIAC-compatible dimmable bulbs or drivers. Follow the instructions for the exact module and any required load derating when dimmers are installed together. Component certification does not certify the complete plate assembly.

Before you order

Check the details for your selected product and configuration.

Review the selected finish in the product photos and description. Contact us if you need help choosing.
Check the dimensions, mounting requirements and intended application.
Check the product description for included components and any items required separately.
