3-Gang Solid Brass 1 Rotary Dimmer + 2 Duplex Outlets
Delivery & lead times
Processing, production and transit times vary by product. Made-to-order items need additional production time. Check the shipping policy and contact us before ordering for a fixed installation date.
View shipping detailsReturns
Return eligibility depends on the product and configuration. Custom items, certain finishes, cabinet hardware, samples and open-box items have exclusions. Read the full policy before ordering or attempting installation.
View the full return policyCombine one rotary dimmer and two duplex outlets on a single three-gang brass plate. The layout pairs an adjustable lighting control with four receptacles, giving the different functions a coordinated appearance.
Layout and visible details

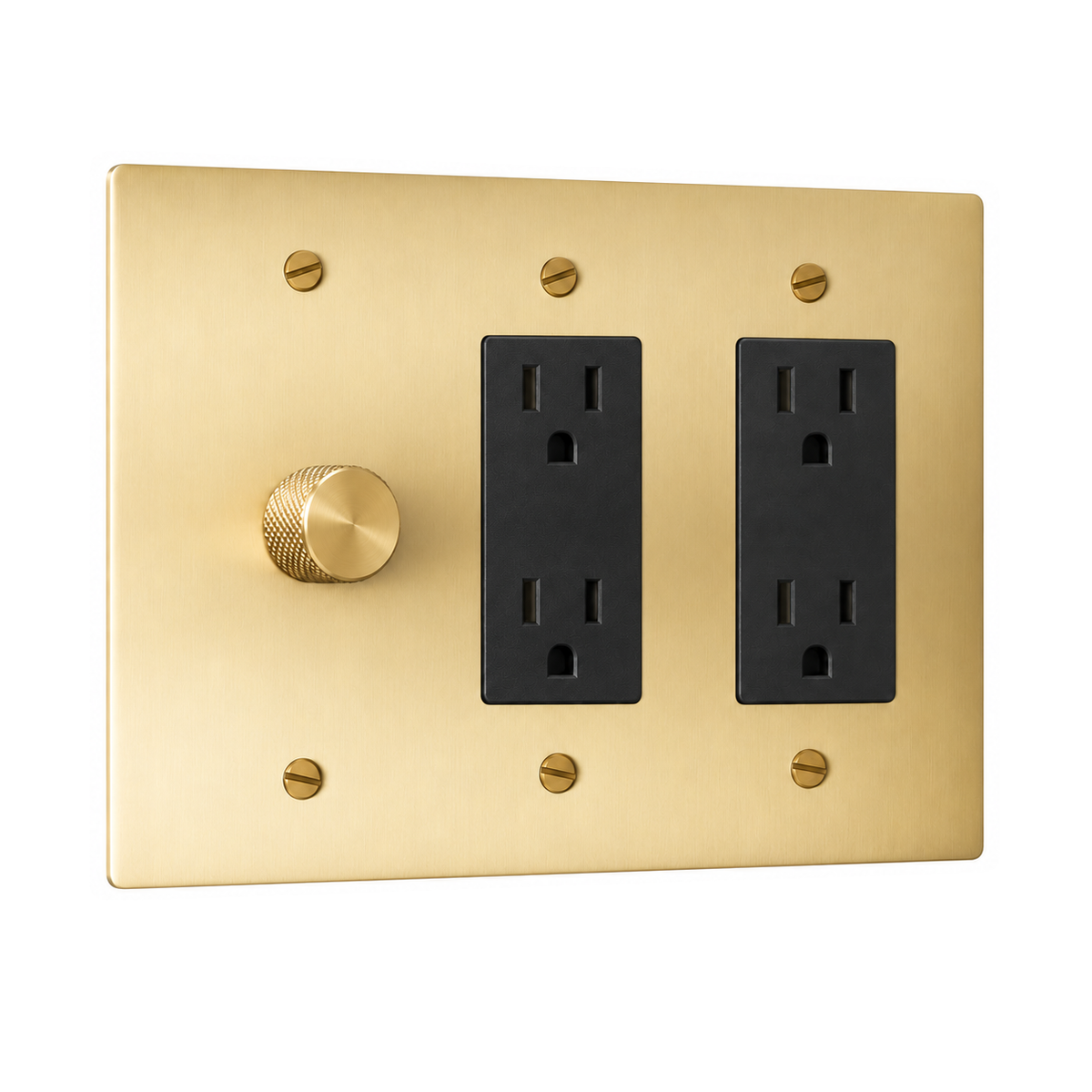

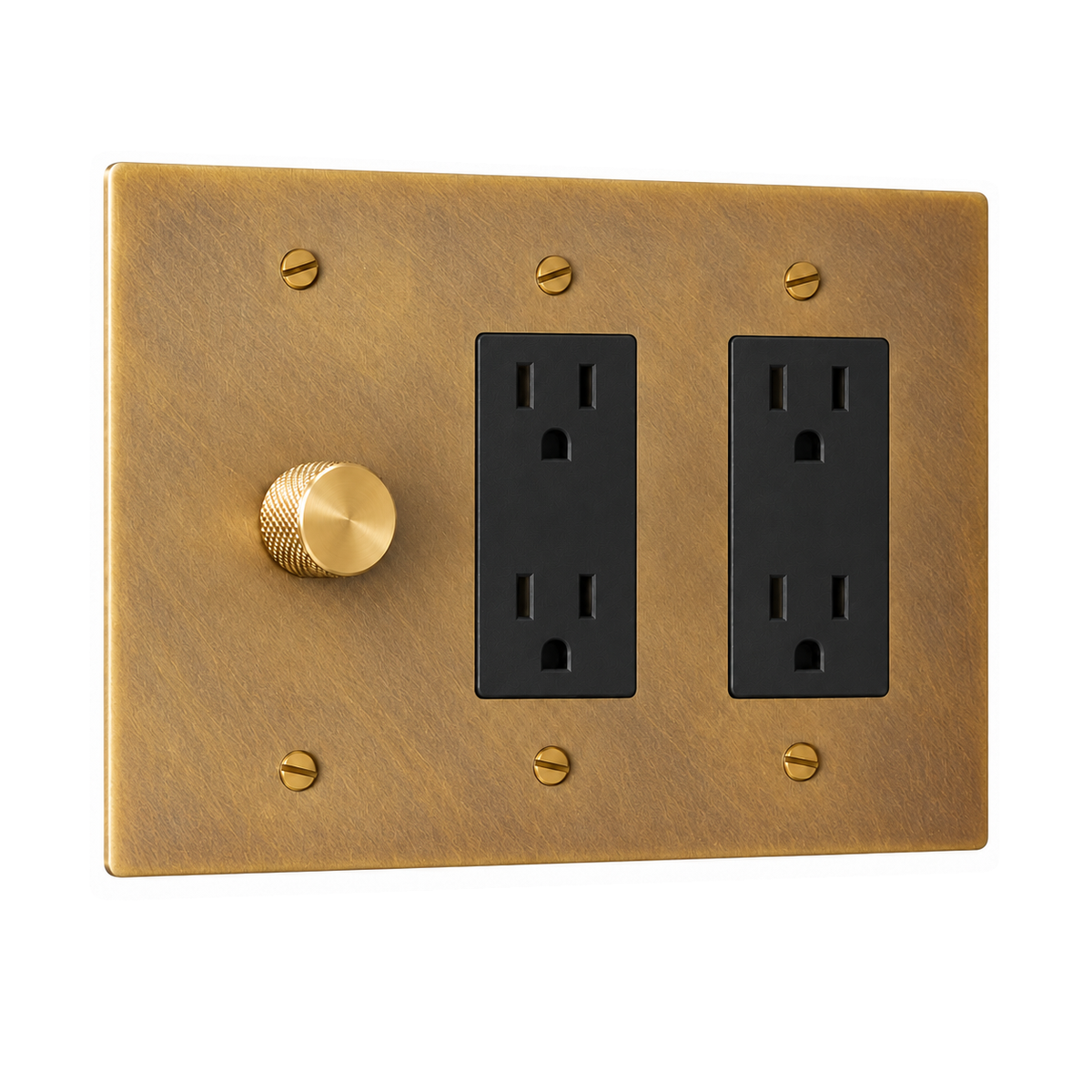

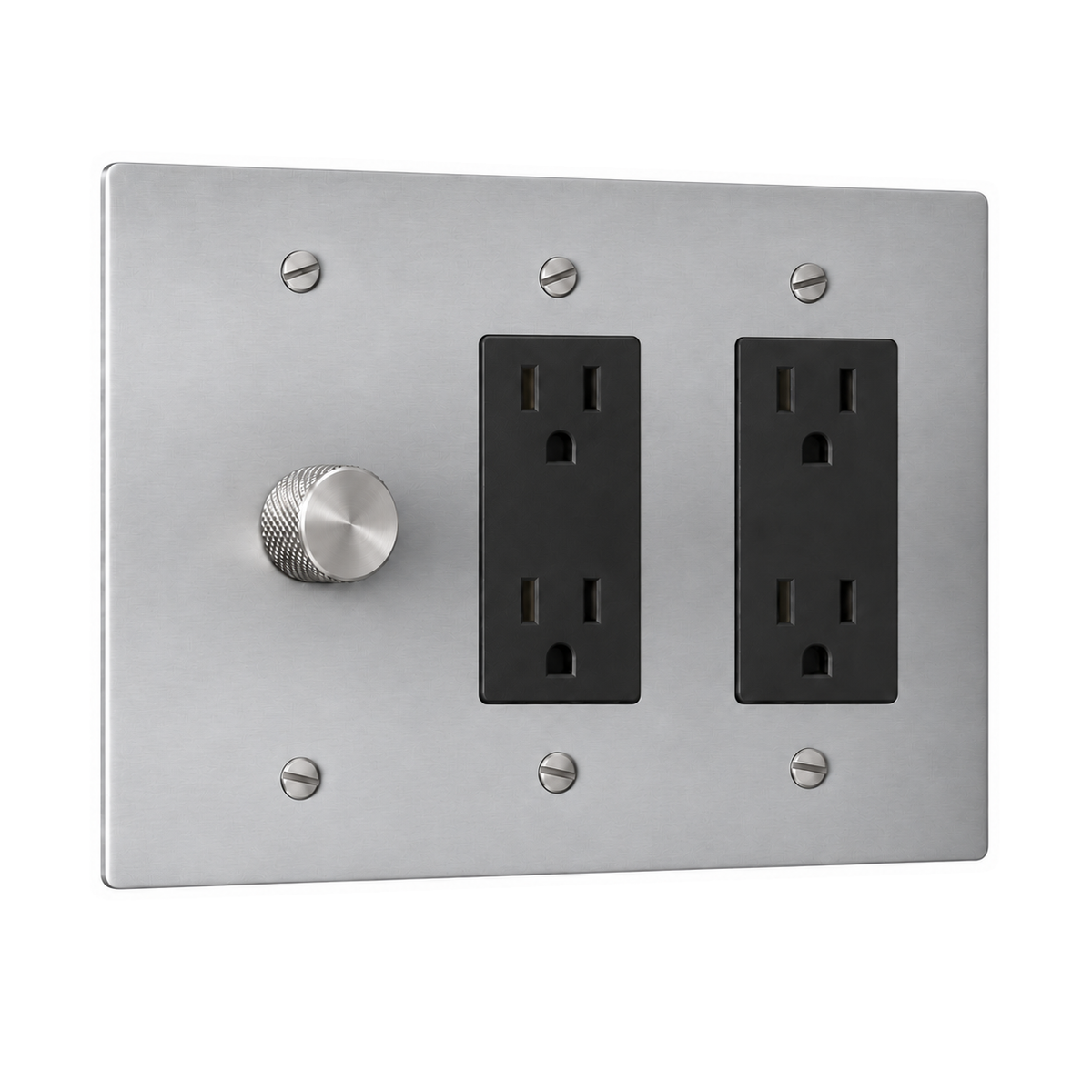

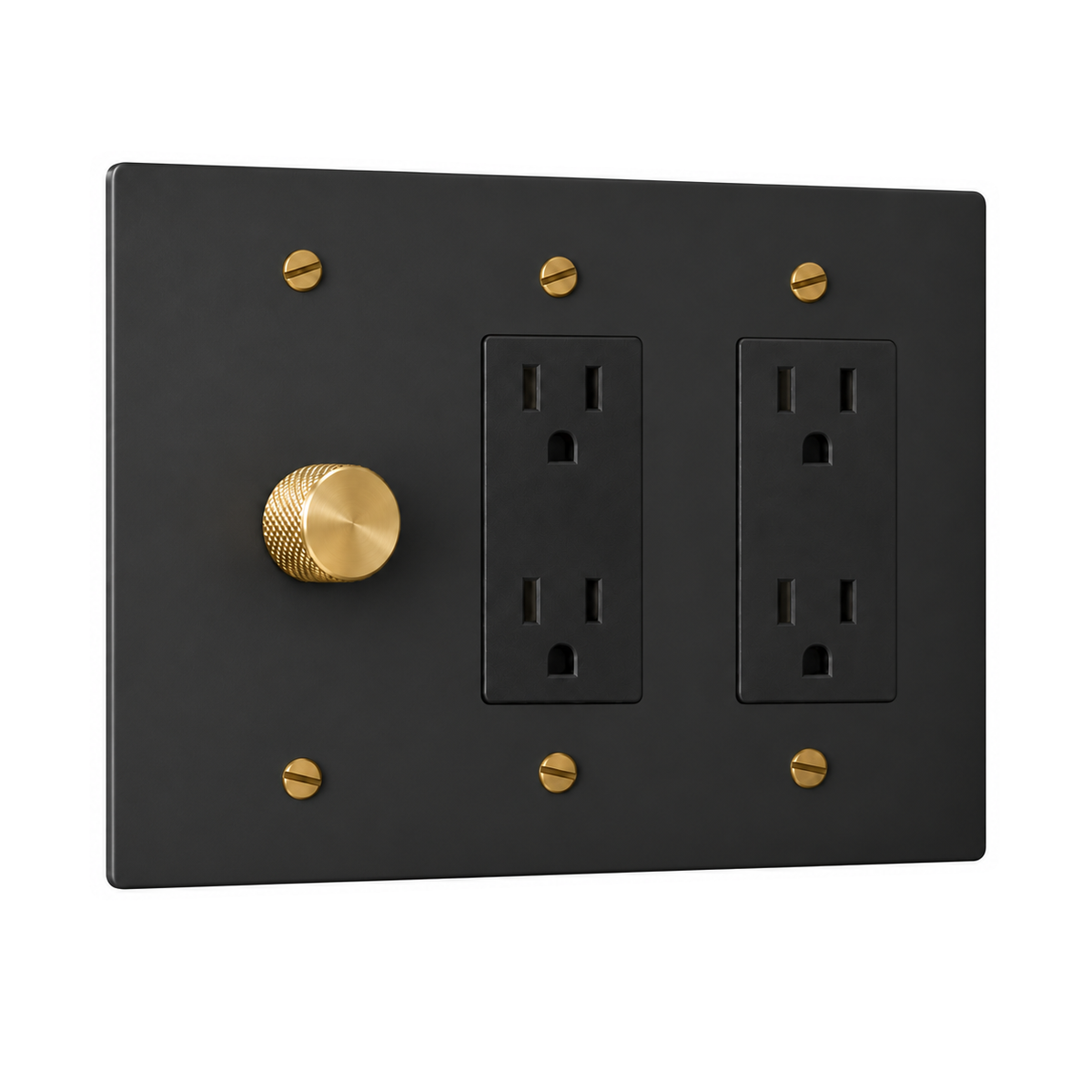

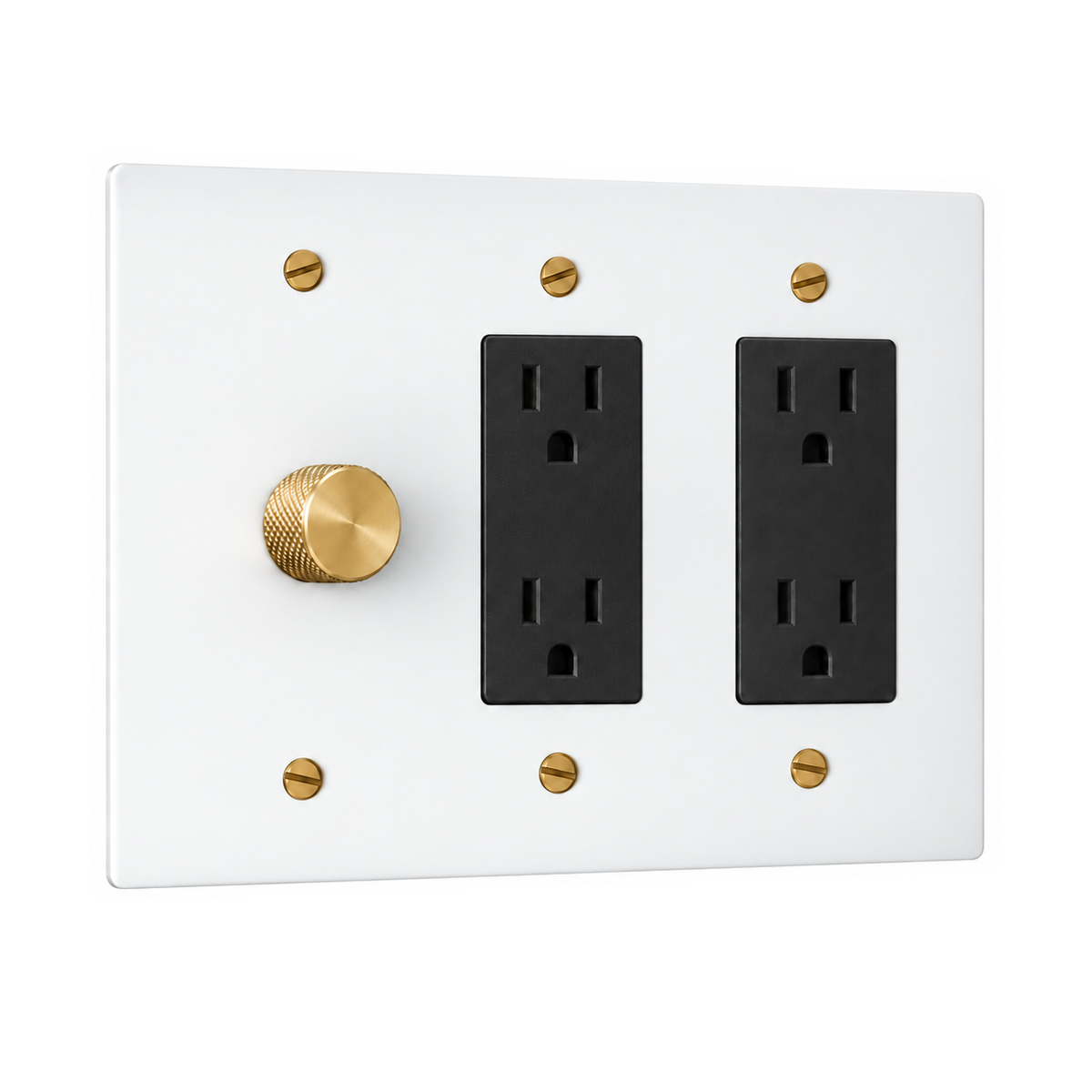

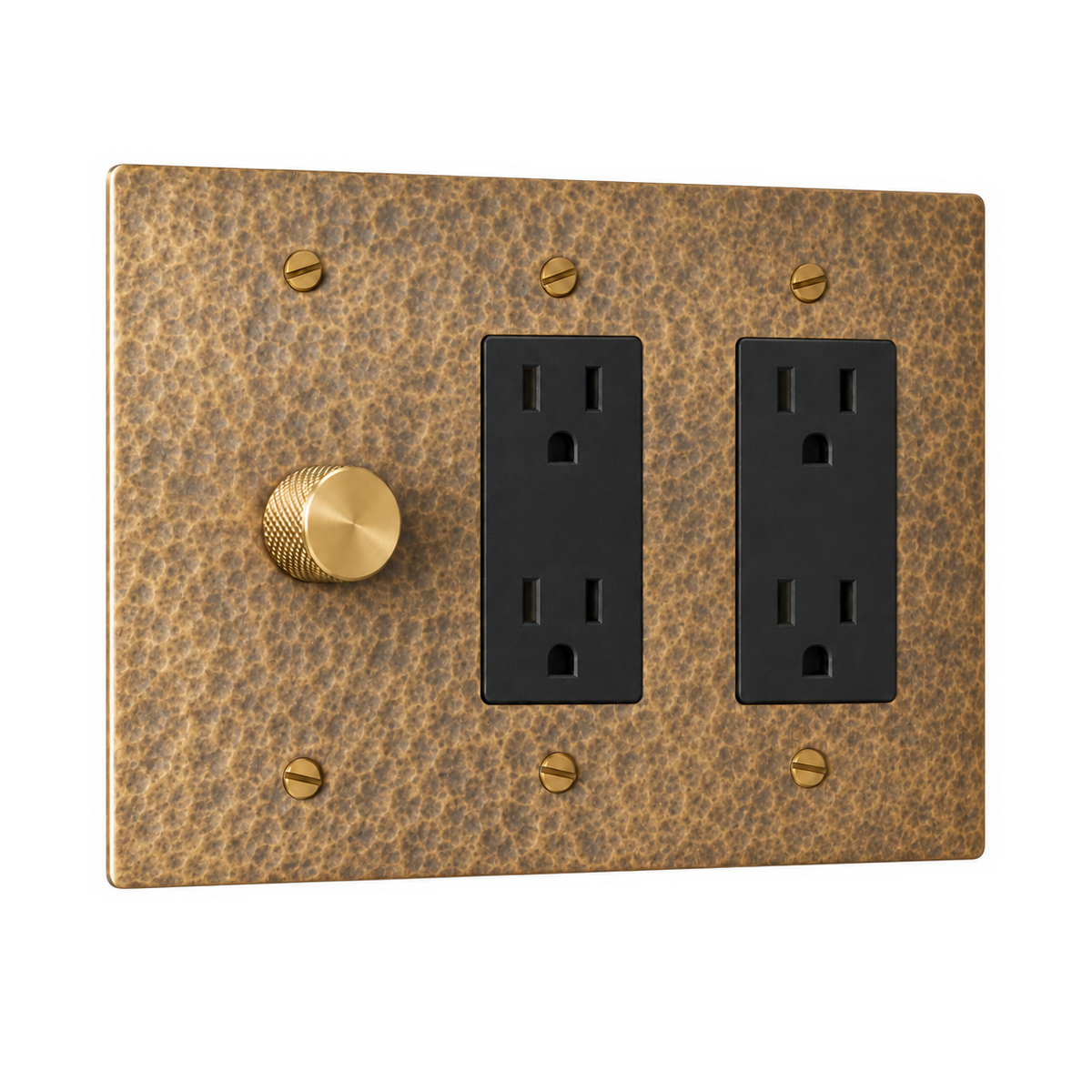

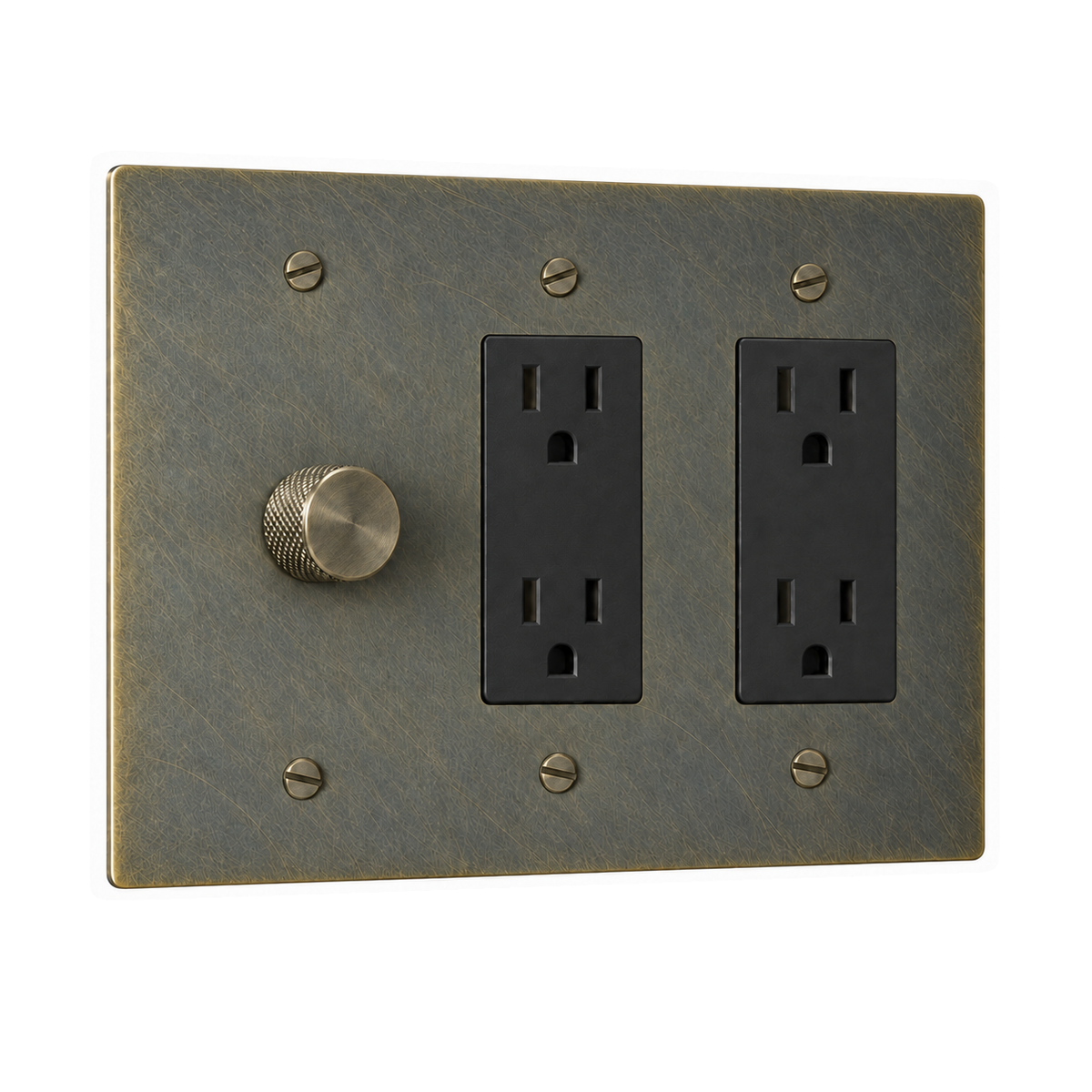

- 3-gang plate with 1 rotary dimmer + 2 duplex outlets.
- Shown left to right: rotary dimmer, duplex outlet, duplex outlet.
- 2 duplex outlet devices; 4 receptacles in total.
- Plate finish selected from the available variants.
Choose your finish
Select the plate finish from the available options and review its matching product photos. Antique Brass and Unlacquered Antique Brass use bright brass controls and screws. Aged Bronze uses matching aged-bronze controls and screws; Stainless Steel uses matching stainless-steel controls and screws. The other plate finishes retain brass controls and screws. Toggle inserts and duplex outlets remain black where included.
Before ordering
Check the selected devices, wiring configuration, electrical ratings and wall-box fit for your project. Match each dimmer to the intended lamp or driver and its permitted load. Check the outlet type and any protection required for the installation. Have a qualified electrician confirm the exact assembly and installation requirements. See our installation and compatibility guide.
Control and screw finishes
| Plate finish | Controls and screws |
|---|---|
| Satin Brass | Brass |
| Antique Brass (Hand-Brushed) | Brass |
| Aged Bronze (Hand-Brushed) | Aged Bronze |
| Stainless Steel | Stainless Steel |
| Unlacquered Antique Brass (Hand-Brushed) | Brass |
| Hammered Antique Brass | Brass |
| Black with Brass Accents | Brass |
| White with Brass Accents | Brass |
Selected devices and operation
Each separate rotary dimmer position uses the 3-Way 120V Dimmer — 600W module (110–120V TRIAC). The 600W figure is its nominal incandescent rating. It supports single-pole wiring or 3-way operation with a standard 3-way switch at the other location. Push the knob for on/off and rotate it to dim. Use compatible dimmable bulbs or drivers and follow the module instructions for lamp ratings and installed multi-gang load limits.
Each outlet position is a black regular 15A duplex outlet with two receptacles. This assembly uses regular duplex outlets; USB and GFCI devices are separate configurations.
Included
- 1 × Selected-finish solid brass wall plate.
- 6 × Slotted mounting screws in the selected control finish.
- 1 × Separate 3-way 110–120V rotary dimmer module with knob in the selected control finish.
- 2 × Black regular 15A US duplex outlet.
Before you order
Check the details for your selected product and configuration.
- Review the selected finish in the product photos and description. Contact us if you need help choosing.
- Check the dimensions, mounting requirements and intended application.
- Check the product description for included components and any items required separately.
3-Gang Solid Brass 1 Rotary Dimmer + 2 Duplex Outlets
