3-Gang Solid Brass 2 Rotary Dimmers + 1 Duplex Outlet

$311.00

Finish: Stainless Steel Compare switch finish samples

Delivery & lead times

Processing, production and transit times vary by product. Made-to-order items need additional production time. Check the shipping policy and contact us before ordering for a fixed installation date.

View shipping details

Returns

Return eligibility depends on the product and configuration. Custom items, certain finishes, cabinet hardware, samples and open-box items have exclusions. Read the full policy before ordering or attempting installation.

View the full return policy

Ask a product question

Bring two rotary dimmers and a duplex outlet together on one three-gang brass plate. Separate dimmer knobs and a matching plate create a consistent arrangement for the selected lighting controls and plug-in connection.

Layout and visible details

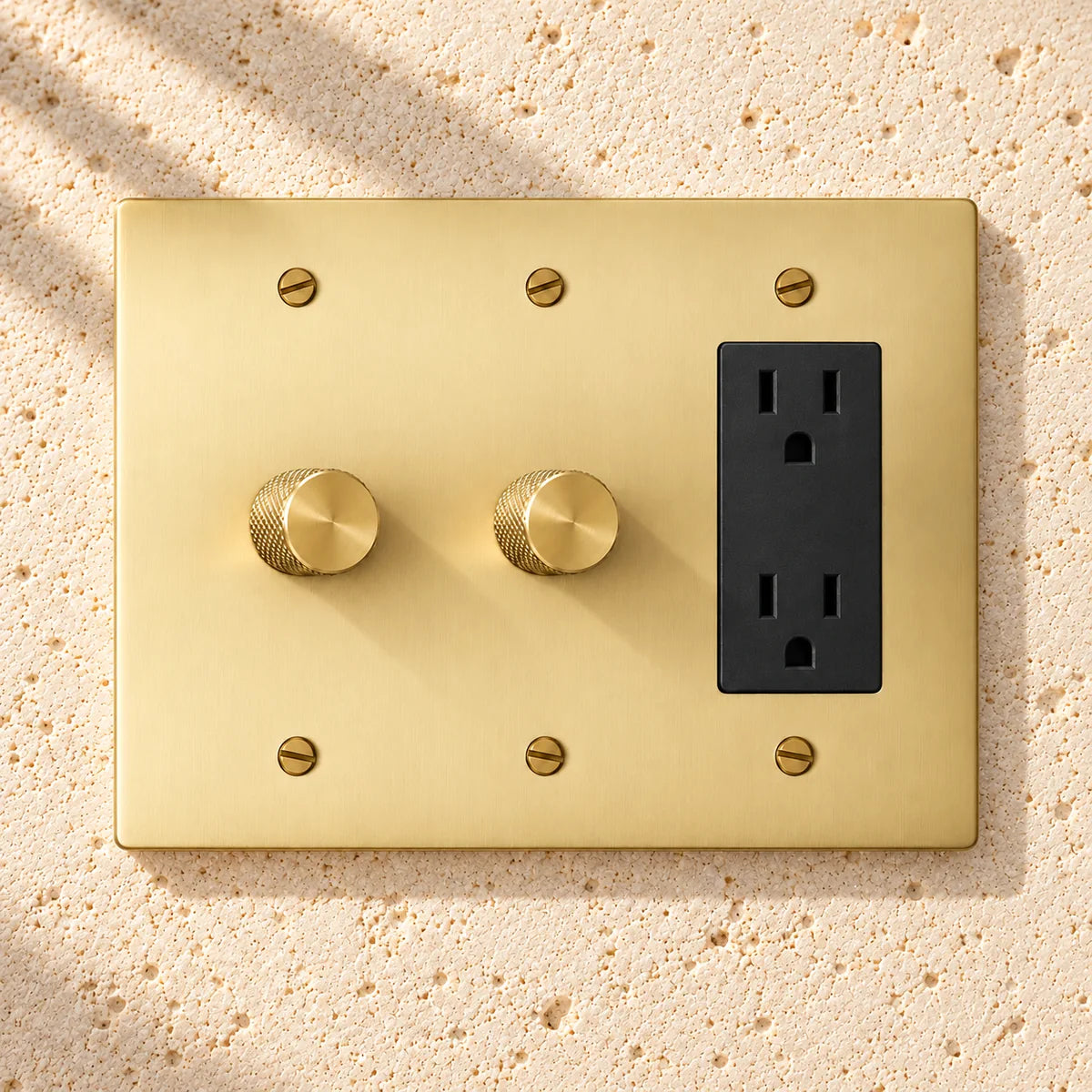

3-gang plate with 2 rotary dimmers + 1 duplex outlet.
Shown left to right: rotary dimmer, rotary dimmer, duplex outlet.
1 duplex outlet device; 2 receptacles in total.
Plate finish selected from the available variants.

Choose your finish

Select the plate finish from the available options and review its matching product photos. Antique Brass and Unlacquered Antique Brass use bright brass controls and screws. Aged Bronze uses matching aged-bronze controls and screws; Stainless Steel uses matching stainless-steel controls and screws. The other plate finishes retain brass controls and screws. Toggle inserts and duplex outlets remain black where included.

Before ordering

Check the selected devices, wiring configuration, electrical ratings and wall-box fit for your project. Match each dimmer to the intended lamp or driver and its permitted load. Check the outlet type and any protection required for the installation. Have a qualified electrician confirm the exact assembly and installation requirements. See our installation and compatibility guide.

Control and screw finishes

Plate finish	Controls and screws
Satin Brass	Brass
Antique Brass (Hand-Brushed)	Brass
Aged Bronze (Hand-Brushed)	Aged Bronze
Stainless Steel	Stainless Steel
Unlacquered Antique Brass (Hand-Brushed)	Brass
Hammered Antique Brass	Brass
Black with Brass Accents	Brass
White with Brass Accents	Brass

Selected devices and operation

Each separate rotary dimmer position uses the 3-Way 120V Dimmer — 600W module (110–120V TRIAC). The 600W figure is its nominal incandescent rating. It supports single-pole wiring or 3-way operation with a standard 3-way switch at the other location. Push the knob for on/off and rotate it to dim. Use compatible dimmable bulbs or drivers and follow the module instructions for lamp ratings and installed multi-gang load limits.

Each outlet position is a black regular 15A duplex outlet with two receptacles. This assembly uses regular duplex outlets; USB and GFCI devices are separate configurations.

Included

1 × Selected-finish solid brass wall plate.
6 × Slotted mounting screws in the selected control finish.
2 × Separate 3-way 110–120V rotary dimmer module with knob in the selected control finish.
1 × Black regular 15A US duplex outlet.

Technical specifications

Dimmer Specifications

These specifications apply to each dimmer module fitted to this product.

Dimming Type: Leading Edge (TRIAC)
Voltage: 110–120 V | 50/60 Hz
Dimmable LED & halogen: 3–150 W per dimmer
Incandescent: 40–600 W per dimmer
Built-in thermal protection: Automatic safety cutoff
Temperature rating (Ta): Up to 130°C (266°F)
Mechanical life: 10,000+ dimming cycles (minimum)
Housing: Flame-retardant polycarbonate (PC)
Control: Supports single-pole wiring or 3-way switching with a standard 3-way switch at the other location.
Operation: Push the knob for ON/OFF and rotate to adjust brightness.
Fit: Each individual dimmer module fits standard North American single-gang electrical wall boxes. Multi-gang assemblies require a wall box matching the plate’s gang count.
Dimmer component certification: UL Certified (U.S. & Canada).

Use only TRIAC-compatible dimmable bulbs or drivers. Follow the instructions for the exact module and any required load derating when dimmers are installed together. Component certification does not certify the complete plate assembly.

Before you order

Check the details for your selected product and configuration.

Review the selected finish in the product photos and description. Contact us if you need help choosing.
Check the dimensions, mounting requirements and intended application.
Check the product description for included components and any items required separately.

Installation & compatibility guidance
